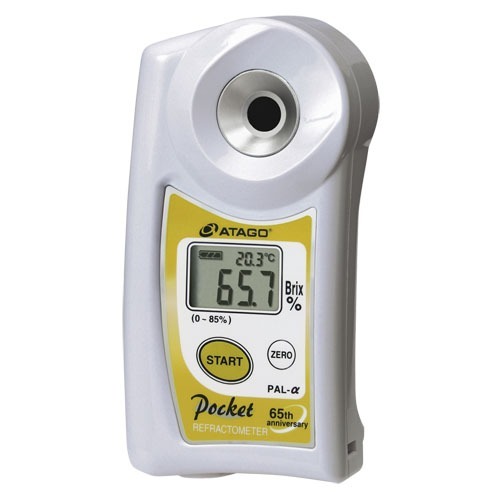

Digital Hand-held PAL-α
Released on ATAGO's 65th Anniversary, the PAL-α is a special model with a wide brix range (0-85%) offered at a very reasonable price. PAL-α is useful for measuring most kinds of samples as well as samples that are in the cooking process. Designed with a water resistant feature, the PAL-α can be washed under running water. PAL-α is equipped with the same great features as the other PAL units.
The Atago 3840 PAL-α is a handheld, digital refractometer that fits in many pockets, measures Brix in the wide 0.0 to 85.0% range, and high temperatures, has automatic temperature compensation (ATC), an external light interference (ELI) warning, and Ingress Protection (IP)-65 rating for dust and water. A Brix refractometer measures the refractive index of a solution in a sample, converts it to sugar concentration in units of percent by weight (% Brix, also known as degrees Brix), and displays the results. Handheld refractometers, also known as sugar meters, concentration meters, or Brix meters, are commonly used in the culinary, food and beverage, pharmaceutical, educational, geological, chemical, and ecological industries, and for water-testing applications.
This refractometer has a light (100g), compact body (10.9 x 5.5 x 3.1cm) that fits in many trouser and shirt pockets. The ergonomic design features curved sides to accommodate one-handed operation, and rounded edges to comfortably fit in pockets. The digital LCD displays measurement values in three seconds. Automatic temperature compensation (ATC) provides immediate, accurate calibration readings, regardless of ambient temperature, and the device can be calibrated with water. High temperature samples can be measured up to 99.9 degrees C with ATC. An external light interference (ELI) feature displays warning message when direct light is detected. The sample stage and well shape help prevent spilling. The body has Ingress Protection (IP)-65 rating for dust and water jets. It can be washed under running water. The 3840 PAL-α comes with a plastic protective carrying case.
- Digital, handheld, pocket refractometer for wide range Brix (0.0 to 85.0%), and high temperature measurement (9.0 to 99.9 degrees C) of samples such as jam, maple syrup, concentrated juice, and honey
- Light, ergonomic, and compact body (10.9 x 5.5 x 3.1cm) for one-handed operation, fits in many trouser and shirt pockets
- Automatic temperature compensation (ATC) for accurate readings in fluctuating temperatures that display in three seconds
- External light interference (ELI) feature displays warning message when direct light is detected
- Body has Ingress Protection (IP)-65 rating for protection against dust and water
Specifications
| Model | PAL-α |
|---|---|
| Cat.No. | 3840 |
| Range | 0.0 to 85.0 % |
| Resolution | Brix : 0.1% Temperature : 0.1ﾟC |
| Accuracy | ±0.2 % |
| Temperature compensation | 10 to 100 ﾟC |
Common Specification
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| Battery Life | About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only) |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
- Atago PAL-1
- Atago PAL-2
- Atago PAL-3
- Atago PAL-α
- Atago PAL-BX/RI
In pursuit of an easy-to-use and ergonomic architecture of new refractometers. ATAGO developped a palm-fitting masterpiece as well as a unit that is high in hygienic properties. Through the efforts to produce a hygienic instrument to be used in any industry, the PAL-series are designed to be completely washable. This refractometer has been approved by HACCP, and is equipped with the ELI feature, which ensures accurate measurements - even outdoor. PAL-α is a special model with a wide Brix range (0.0-85.0%). PAL-α is useful for measuring most kinds of samples as well as samples that are in the cooking process. Designed with a water resistant feature, the PAL-α can be washed under running water.
