Atago

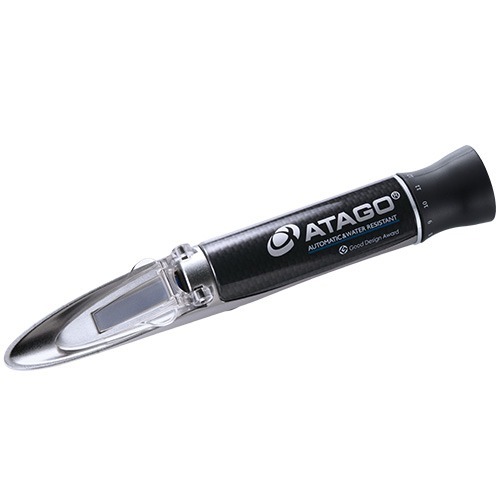

Hand Held Refractometer MASTER-20α

Description Features Configuration Application

MASTER-20α are low concentration model (measurement range Brix 0.0 to 20.0%) of the MASTER-α / MASTER-Pα. Good for measurements of low concentration fruit juices, cutting oil, etc. It is Automatic Temperature Compensation (ATC) model with water resistant feature (IP65). The MASTER-20α is made of metal, and the MASTER-20Pα is plastic. The specifications are exactly the same. For salty and acidic samples, choose the plastic body, MASTER-20Pα.

  • Handheld portable refractometer for Brix (0.0 to 20.0%) measurement of food products with low sugar content such as tomato and fruit juices, fruit, coffee, bean milk, and cutting oil
  • Automatic temperature compensation (ATC) for immediate, accurate calibration readings, regardless of ambient temperature
  • Ambient light illuminates the scale; no additional power source is required
  • Ridged outer shell with a telescope-shaped, streamlined design [20.7 x 3.2 x 3.4 cm (H x W x D)] for gripping, and a spoon-shaped tip for smooth sampling
  • Durable metal body, Ingress-Protection (IP)-65 rated for protection against dust and water jets

Specifications




Model

MASTER-20α

Cat.No.

2381

Range

Brix : 0.0 to 20.0%

Minimum Scale

0.1%

Resolution

0.1%

Accuracy

±0.2%

Repeatability

±0.1%



This metal refractometer features a low concentration and measures various kinds of juice, coffee and other beverages, in addition to processed foods, such as sauce, ketchup and low-calorie jam.
