Atago

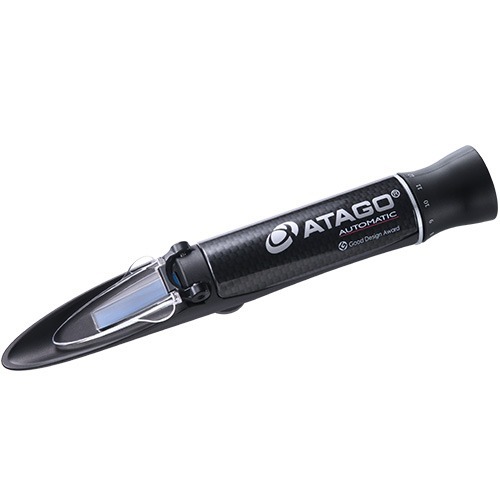

Hand Held Refractometer MASTER-20PT

Description Features Configuration Application

MASTER-20PT is for low concentration measurements such as juices, cutting oil, etc. This is a good alternative choice when the water resistant feature is not a priority. The MASTER-20T is made of metal, and the MASTER-20PT is plastic. The specifications are exactly the same. For salty and acidic samples, choose the plastic body, MASTER-20PT.



  • Scale Range
    Brix 0 to 20% (Automatic Temperature Compensation)
  • Minimum Scale
    Brix 0.1%
  • Measurement Accuracy
    Brix ±0.2% (10 to 3,030°C)
  • Repeatability
    ±0.1%
  • Size & Weight
    1.26 x 1.34 x 8.15in (3.2 x 3.4 x 20.7cm), 3.7oz (105g)

  • These are an Automatic Temperature Compensation (ATC) model but have no water-resistant feature.

  • The MASTER-20T is made of metal, and the MASTER-20PT is plastic.

  • For salty and acidic samples, choose the plastic body, MASTER-20PT



Specifications

Model

MASTER-20PT

Cat.No.

2992

Range

Brix : 0.0 to 20.0%

Minimum Scale

0.1%

Accuracy

±0.2%

Repeatability

±0.1%


MASTER-20T / MASTER-20PT analog refractometers are low concentration models suitable for measurements of low concentration fruit juices, cutting oil, etc.
