Atago

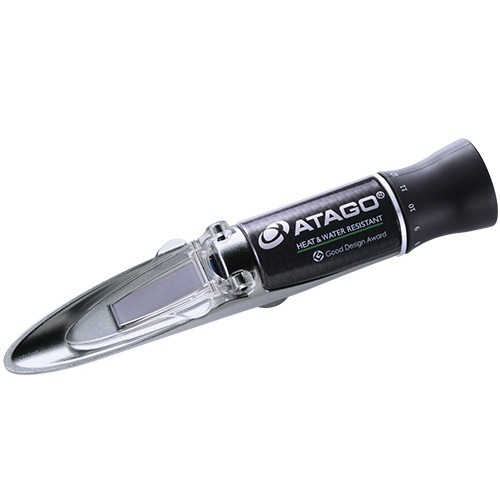

Hand Held Refractometer MASTER-50H

Description Features Configuration Application

The MASTER-50H is developed for measuring high-temperature samples up to Brix 50%. It has an automatic temperature compensation and a water resistant function.

Diameter x Total Length: 1.3 x 6.6 inches (33 x 168 mm); 0.04 oz (0.120 kg); Master Series: The ultimate handheld refractometer with all functions, operations, and design; Bright field of view and easy to read. The sample of the tip is automatically suction between the lid plate and the prism. No need to open or close the lid plate. The smooth grip provides enhanced hygiene surface with no bumps. Measuring range: Brix0-50% Minimum scale: 0.5% Uses: For measuring sagging, drinking, and simming. Samples produced while boiling can be measured at a high temperature (under 212°F (100°C) or lower). Automatic temperature correction, waterproof function, high temperature type (enhanced prism).

  • External Dimensions: 1.3 x 1.3 x 6.6 inches (33 x 33 x 16)
  • Product weight: 130g
  • Daylight plate for small volume samplings : RE-2311-67M
  • The ultimate handheld refractometer with all functions, operations
  • Automatic temperature correction, waterproof function, high temperature type (enhanced prism).

Specifications

Model

MASTER-50H

Cat.No.

2354

Range

Brix : 0.0 to 50.0%

Minimum Scale

0.5%

Accuracy

±0.5%

Repeatability

±0.25%


This heat-resistant model of refractometer within the MASTER Series is developed for measuring high-temperature samples at their respective production sites.

MASTER-50H is heat resistant model of the MASTER-Series. The MASTER-50H is the successor model of the conventional model, H-50. The MASTER-50H is developed for measuring high-temperature samples at their respective production sites. Moreover, the MASTER-50H has a longer service life as compared with conventional types because its prism is made of corrosion resisting tempered glass.
