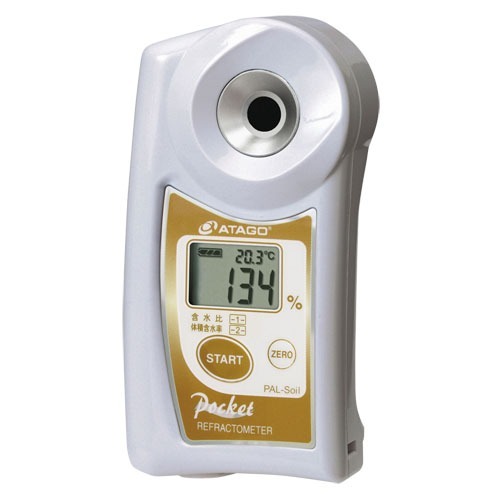

Soil Moisture Meter PAL-Soil

Description Features Configuration Application

PAL-Soil has dual scales of Gravimetric soil moisture and Volumetric soil moisture. Save on time, labour, and material with PAL-Soil. A measurement only takes 10 minutes whether out in the fields or in the lab. In accordance with ISO 16586:2003 “Soil quality – Determination of soil water content as a volume fraction on the basis of known dry bulk density – Gravimetric.”

  • Range: Gravimetric soil moisture: 0 to 200%
                 Volumetric soil moisture: 0 to 100%
  • Accuracy: ±2% (0 to 40%) ~ ±5% (41 to 100%)
  • One touch measurement
  • Zero calibration with water
  • 0.3ml sample requirement for measuring
  • 3 second result time
  • Automatic temperature compensation
  • Battery operated (2 x AAA. Approx 11,000 measurements)
  • Compact and lightweight for portability

Specifications



Model

PAL-Soil

Cat.No.

4571

Range

Gravimetric soil moisture : 0 to 200%

Volumetric soil moisture : 0 to 100%

Accuracy

Gravimetric soil moisture:

±2% (0 to 40%)

±5% (41 to 100%)

Volumetric soil moisture:

±1% (0 to 60%)

±2%(61 to 100%)

Temperature compensation

10 to 40ﾟC















Common Specification



Sample Volume

2 to 3 drops

Measurement Time

About 3 seconds

Power Supply

2 × AAA Batteries

Battery Life

About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)

International Protection Class

IP65 Water resistant

Dimensions & Weight

5.5 × 3.1 × 10.9cm 100g (main unit only)

A measurement only takes 10 minutes whether out in the fields or in the lab.

  • Gravimetric soil moisture: 0 to 200% (Automatic Temperature Compensation)
  • Volumetric soil moisture: 0 to 100%
