Wireless PM 2.5 Air Quality Sensor

Description Features Configuration Application

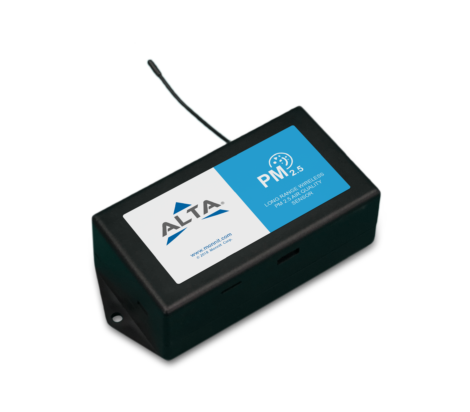

The ALTA wireless PM2.5 sensor measures PM1, PM2.5 and PM10 concentrations in the air and transmits the measurement to iMonnit.

• Measurement range:

- PM1: 0.3 to 1.0 um

- PM2.5: 1.0 to 2.5 um

- PM10: 2.5 to 10 um

Principle of Operation

The PM2.5 sensor works by turning on a small fan at the beginning of a measurement cycle to bring in a volume of ambient air and measuring the particulate matter (PM) content of that sample volume. The sensor measures PM content using a laser that scatters based on the number and size of particles suspended in the air. It is important to keep the inlet ports of the sensor clear to ensure proper readings.

Features of Monnit ALTA Sensors

• Wireless range of 1,200+ feet through 12+ walls *

• Frequency-Hopping Spread Spectrum (FHSS)

• Improved interference immunity

• Improved power management for longer battery life **(12+ years on AA batteries)

• Encrypt-RF® Security (Diffie-Hellman Key Exchange+AES-128 CBC for sensor data messages)

• Onboard data memory stores up to 512 readings per sensor:

- 10-minute heartbeats = 3.5 days

- 2-hour heartbeats = 42 days

• Over-the-air updates (future proof)

• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email

*Actual range may vary depending on environment.

**Battery life is determined by sensor reporting frequency and other variables. Other power options are also available.

ALTA PM 2.5 Air Quality Sensor | Technical Specifications

Supply voltage					2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
Current consumption					0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5
					mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX
					mode)
Operating temperature range (commercial version) **					-18°C to 55°C (0°F to 130°F) with Alkaline Batteries
					-40°C to 85°C (-40°F to 185°F) with Lithium Battery
Operating temperature range (industrial version) **					-40°C to 85°C (-40°F to +185°F) with Industrial Battery
Measurement sensitivity					PM1: 0.3 to 1.0 um
					PM2.5: 1.0 to 2.5 um
					PM10: 2.5 to 10 um
Counting efficiency					50% @ 0.3 um, 98% @ >= 0.5 um
Effective range					0 to 500 ug/m^3

Maximum range					0 to 1000 ug/m^3
Maximum consistency error					+/- 10% @ 100 to 500 g/m^3
					+/- 10 ug/m^3 @ 0 to 100 ug/m^3
Response time					~10 Seconds***

Active current					~180 mA @ 3.3 battery voltage, ~0.6 W overall
Operating temperature					-10 to 60 C
Operating humidity					0 to 99%
Storage temperature					-40 to 80 C
Mean time to failure					>= 3 Years
Integrated memory					Up to 512 sensor messages
Wireless range					1,200+ ft non-line-of-sight
Wireless operation					900 MHz—Frequency-Hopping Spread Spectrum
					868 MHz and 433 MHz—Frequency-Agile Wireless
Security					Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight					3.7 ounces

Example Applications

• Building/Room Air Quality

• Pollution Sensing

• Mines and Quarries

• Cement Factories

• Construction/Demolition Sites

• Petrochemicals

• Agricultural/Waste

• Many additional applications
