Microscopy
FHD Zap
Flexible 1080p Digital Camera Microscope.

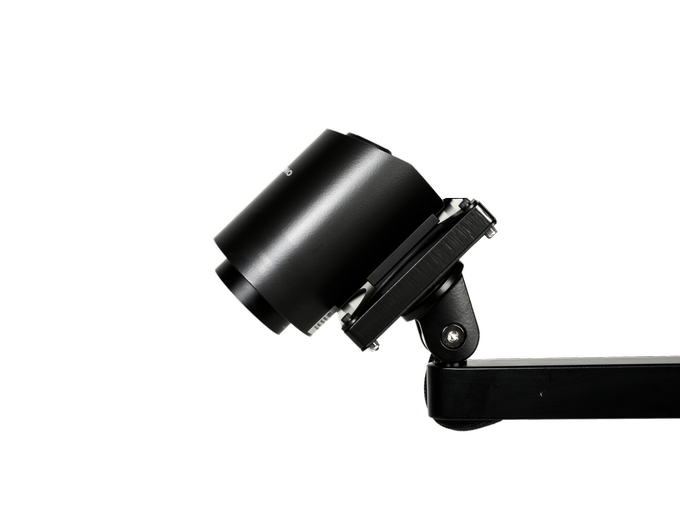

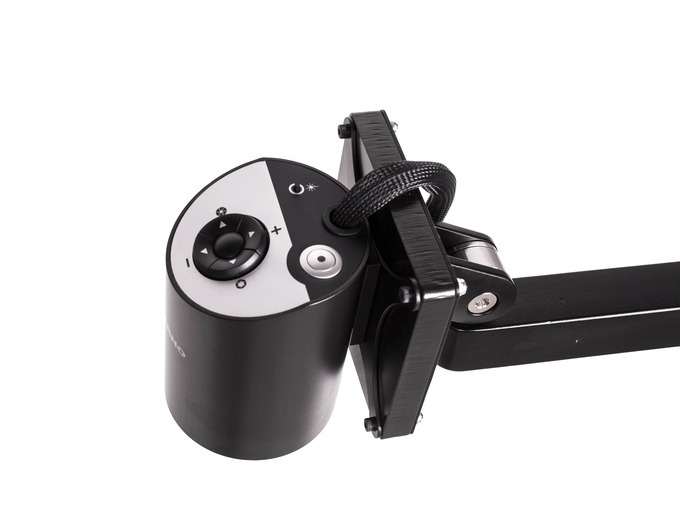

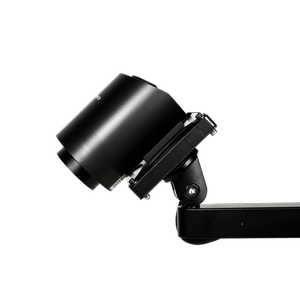

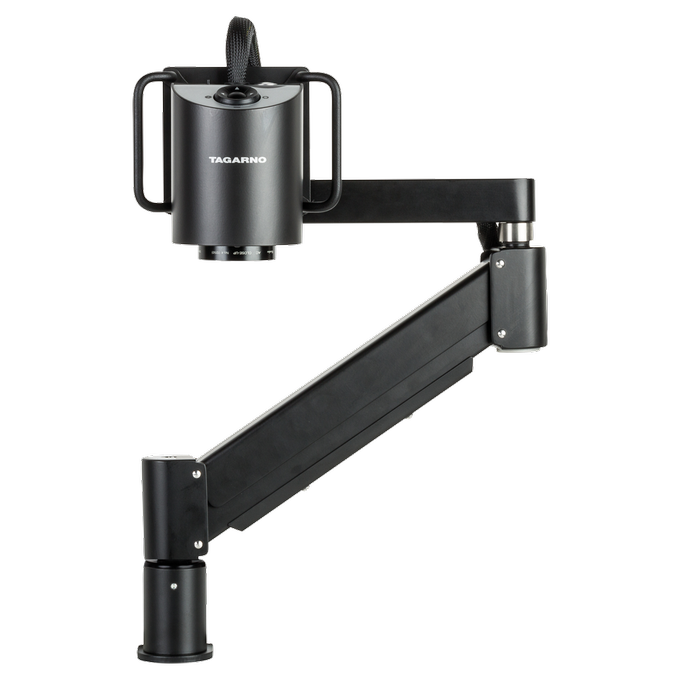

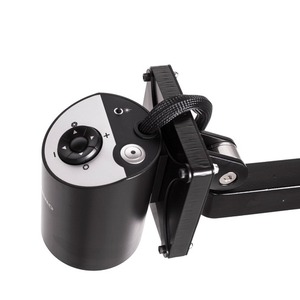

The moveable digital microscope
The TAGARNO ZAP digital microscope is more than just magnification. It is flexibility and adjustability at your service. Move it around to fit your needs perfectly.
Flexible inside out
The TAGARNO ZAP digital microscope produces crystal-clear magnified images that are perfect as indisputable documentation material. Images can rapidly be shared with colleagues and partners. High-quality materials and surface treatments ensure a long product life with no maintenance required.
Take a closer look
Optical zoom, ultra-high frame rates, and 1080p image quality. The TAGARNO ZAP digital microscope is a powerful and flexible microscope. Born with a laser pointer that guides you during the inspection.
Designed to do no harm
Four out of five ordinary microscope operators suffer from musculoskeletal pain. But with TAGARNO ZAP, you work with technology designed for humans. Developed in close cooperation with ergonomics specialists, the TAGARNO ZAP improves workplace ergonomics, with correct working postures and optimal conditions for eyes, neck and back.
Technical Specifications
Magnification | 1.6 - 48.1x on 22' with a +4 lens |
Lens to object distance | 250mm/9.6” with a +4 lens |
Included lens | +4 |
Weight | 1.5kg/3.3lbs |
Camera resolution | FULL HD 1080p, 1920x1080p at 59,94Hz FULL HD 1080p, 1920x1080p at 50Hz FULL HD 1080p, 1920x1080p at 29,97Hz FULL HD 1080p, 1920x1080p at 25 Hz HD 720p, 1280x720p at 59,94Hz HD 720p, 1280x720p at 50Hz |
Camera Zoom | 30 optical |
Recommended monitor format | Widescreen |
Output | HDMI and USB 3.0 |
Monitor size | Optional |
Total power consumption | 7,4 W |
Standby consumption | 0.5 W |
- ZAP FLEX
- ZAP INLINE
The TAGARNO ZAP digital microscope is more than just magnification. It is flexibility and adjustability at your service. Move it around to fit your needs perfectly.
