CheckMate 4 - Headspace Gas Analyzer
***NEW*** A flexible and reliable analyzer with maximum uptime

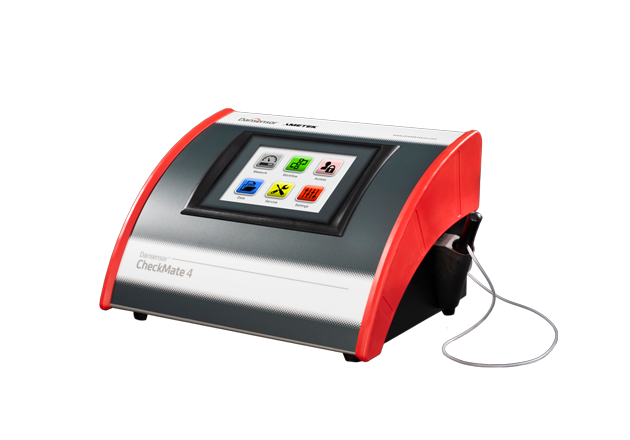

The Dansensor CheckMate 4 is our premier headspace gas analyzer – a compact tabletop instrument that combines extreme accuracy and reliability with an intuitive user experience. The multilingual touchscreen helps minimize the training time needed for new operators. At the same time, individual user logins provide limited access to functions, helping to secure data and traceability.
Save product test settings to ensure complete and comparable data records. Quickly switch between product test settings on-screen or by scanning the product’s barcode with the optional barcode scanner.
Automated data storage and real time data transfer ensure accuracy and speed by eliminating the time and risk associated with manual data entry. Optional PC software makes it easy to monitor data across multiple packaging lines and prepare for audits.
The Dansensor CheckMate 4 includes an improved sample system and pump to avoid blockages and ensure smooth operation. The instrument's sensor module can be upgraded to a newly calibrated module on-site in minutes.
Benefits
- Reliable, accurate measurements protect your product and brand
- Increase efficiency with short test times and automated data logging
- Easy to use with intuitive touchscreen
- Maximize uptime with improved pump and sample system
- Reduce errors with defined test programs, automated data handling and user logins
Features
- O2 or combined O2 /CO2 headspace measurements – flexible configuration
- Very small sample gas volume
- Save test settings for quick changes and comparable results
- Data storage and real time data transfer • Fast and secure LAN connection
- Touchscreen with multilingual graphic interface
- Individual user logins provide security and reduce risk of errors
- Alarm alerts when pre-set gas limits exceeded
- USB port for connecting optional barcode scanner, keyboard or printer
- O2 (zirconia) - Fastest and most accurate oxygen sensor
- O2 (electrochemical) - Not sensitive to alcohol, carbon monoxide or carbon dioxide
- CO2 (infrared dual beam) - Full-scale, temperature compensated carbon dioxide sensor

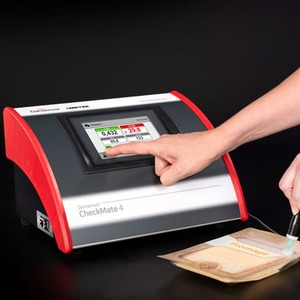

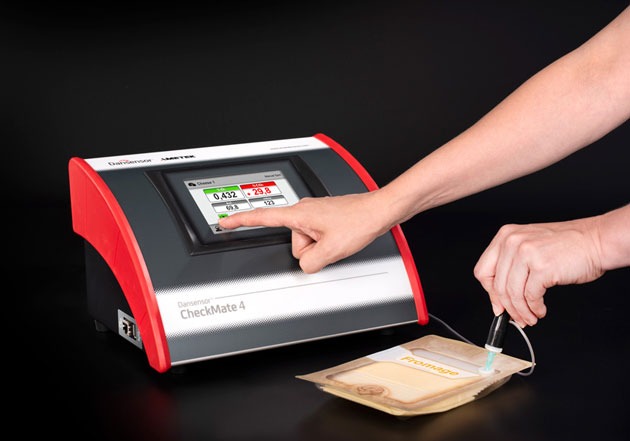

This tabletop headspace analyzer is often used directly at the packaging line to quality check that MAP packages contain the correct gas mixture. Use the Manual Spot or Auto Spot measuring modes to test for:
- O2 content
- O2 and CO2 content
It is suitable for a wide variety of food, beverage, pharmaceutical and medical packages that utilize a modified atmosphere.
Some examples of our customers’ applications include: Snack Foods - Bakery - Pizza - Meats & Cheese - Nuts - Fish - Fruit, Salads & Vegetables - Pet Foods - Pharmaceutical Packaging - Medical Devices
Alternatively, use the Intermittent measuring mode in the laboratory for testing new package designs and materials and conducting shelf-life studies. The Continuous mode can help you ensure your gas mixer is adjusted correctly and is useful in selected research experiments.
