Leak Detectors

MAP leak detection - LeakPointer 3

Efficient non-destructive leak detection in Modified Atmosphere Packaging.

Description Features Configuration Application

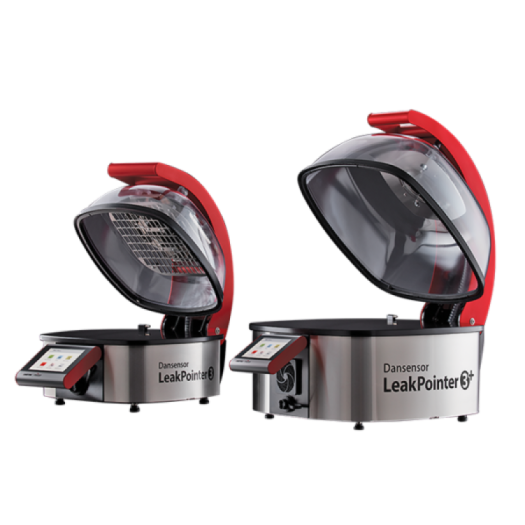

Dansensor® LeakPointer 3 and Dansensor® LeakPointer 3+ deliver 100% assurance when it comes to leak detection. Highly accurate they are able to carry out non-destructive leak detection finding leaks as small as 50 µm.  This makes them essential in gas-flushing-lines where undetected leaks can cause costly damage to the customer relationship. The Dansensor LeakPointer 3 and Dansensor LeakPointer 3+ are both approved to carry out leak detections in the food industry.

To ensure quality when you’re working with Modified Atmosphere Packaging (MAP) or gas flushing the Dansensor LeakPointer 3 and Dansensor LeakPointer 3+ are essential, they will carry out leak detection of small size leaks and thereby ensuring a consistently high product quality.

Features

  • Non-destructive leak testing
  • Safe-guards product quality
  • Detects micro leaks down to 50 microns
  • Can be harmonised with other Dansensor instruments
  • Offers options for Data collection and data sharing
  • Intuitive and easy to operate

  Additional benefits Dansensor LeakPointer 3:

  • Immediate calculation of hole size
  • Non-destructive test cycle as fast as 10 seconds
  • Allows testing of multiple large packages simultaneously

Benefits

  • Designed for the food industry
  • Easy operation via touch screen
  • Scan barcode or choose program to operate
  • Option to prompt user for additional measurement input
  • Read the leaks in microns
  • Immediate vacuum holding lid down (with visual indicator)
  • Integrated Delta-P meter
  • Auto data logging
  • Data export per cycle via LAN
  • Printing facility (USB)
  • Low sensitivity to surrounding CO2 levels

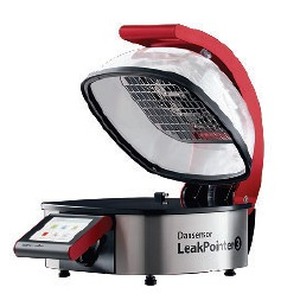

LeakPointer 3 Package Types: Flexible and rigid packages.

Individual packages. Maximum Product Size (DxWxH):

With Dansensor PackFix: 325 x 295 x 86mm

Without Dansensor PackFix: 325 x 268 x 110mm

Power Supply: 100-264 VAC, 50/60 Hz

Dimensions & Weight: (Lid open)543 x 400 x 617mm, 20 kg

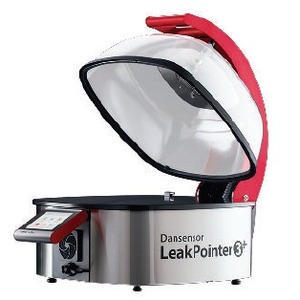

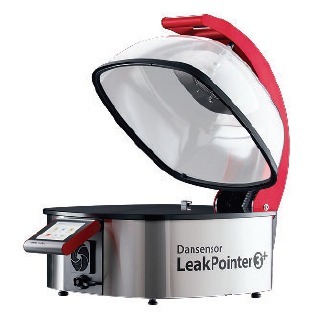

LeakPointer 3+ Package Types: Flexible and rigid packages.

Multiple packages. Maximum Product Size (DxWxH): 465 x 363 x 155mm

Power Supply: 115 VAC, 60 Hz / 230 VAC, 50 Hz

Dimensions & Weight: (Lid open)751 x 555 x 812mm 50 kg

  • Leak Detection for Fresh Red Meat
  • Leak Detection for Poultry Meat
  • Leak Detection for Fish
  • Leak Detection for Cold or Ready-to-Eat meats
  • Leak Detection for Bakery Products
  • Leak Detection for Dairy Products
  • Leak Detection for Fruit and Vegetables
  • Leak Detection for Dried Meats
  • Leak Detection for Nuts and Dried fruit
  • Leak Detection for Coffee and Tea
  • Leak Detection for Drinks
  • Leak Detection for Fats and Oils
  • Leak Detection for Freeze Dried Products
  • Leak Detection for Fresh Pasta
  • Leak Detection for Nutraceutical Products
  • Leak Detection for Packaging / Manufacturing and Seal Integrity
