On-Line Analyzers

Industrial Process Analyzers - ISM-3

The Industrial Sensor Module (ISM-3I) measures oxygen in inert gases and CO2. Targets applications like the various types of nitrogen generators.

Description Features Configuration Application

Industrial sensor module for Oxygen monitoring - Process analyser with low maintenance demand

The Industrial Sensor Module (ISM-3I) measures oxygen in inert gases (Nitrogen) and CO2 and targets applications like the various types of nitrogen generators.

ISM-3I is a digitally controlled analyser, featuring user programmable gas alarms and complete self-diagnostics with system alarms. An extremely versatile analyser with very low maintenance requirements and high reliability.

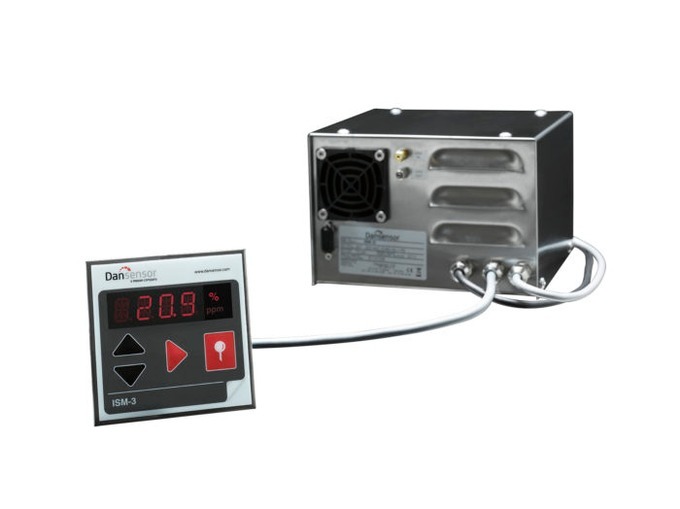

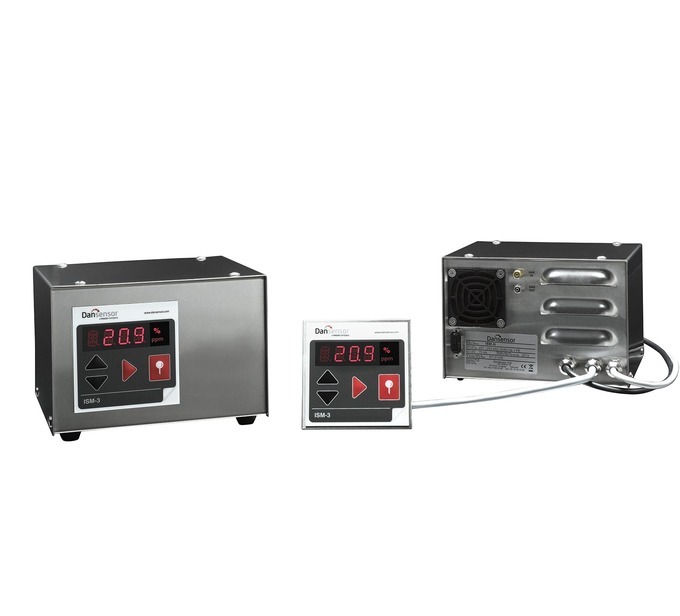

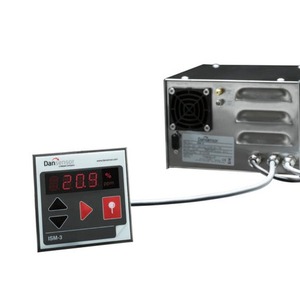

ISM-3I features separate sensor and display boxes with user interface for easy panel mounting. This allows for mounting of the small display unit where convenient and the sensor unit can be placed out of the way.

  • High reliability and accuracy - better than +/-1% of reading
  • Large measuring range - 100% - 1ppm, auto ranging
  • Self diagnostics - detection of vital parameters with alarm output
  • Separate display and sensor - high flexibility for built-in



ISM-3i Weight: 3.7kg

Product Size (HxWxD):

Cabinet: 125 x 185 x 125mm, Display 96 x 96 x 20mm 3mm bezel for panel mounting ISM-3x

Weight: 3.8kg

Product Size (HxWxD): 125 x 185 x 160mm

  • Fresh Red Meat Poultry Meat Fish Cold or Ready-to-Eat Meats
  • Bakery Products
  • Dairy Products Fruit and Vegetables
  • Dried Meats Nuts and Dried Fruit
  • Coffee and Tea Drinks
  • Fats and Oils Freeze Dried Products
  • Fresh Pasta Nutraceutical Products
  • Packaging / Manufacturing and Seal Integrity
Request A Quote

Industrial Process Analyzers - ISM-3

Download Brochure

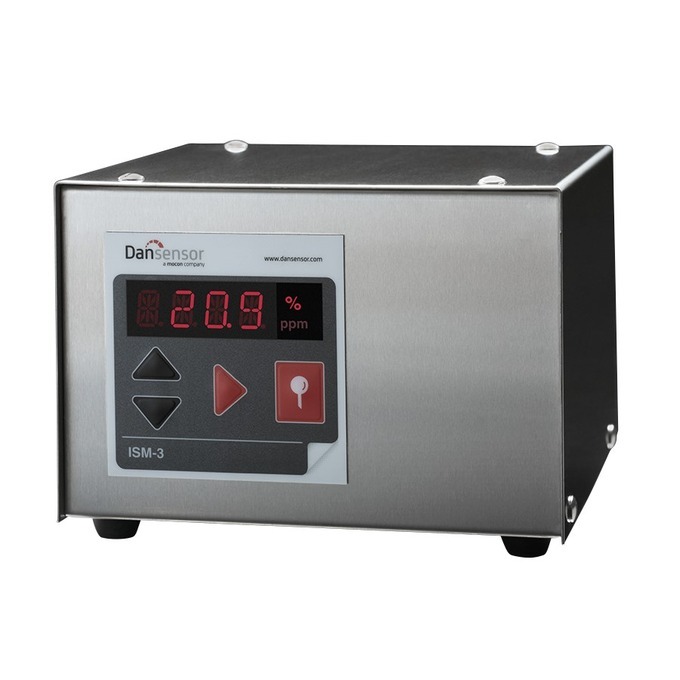

The industrial process analyzer Mocon ISM-3
The industrial process analyzer Mocon ISM-3 The industrial process analyzer Mocon ISM-3
