Viscosity & Rheology

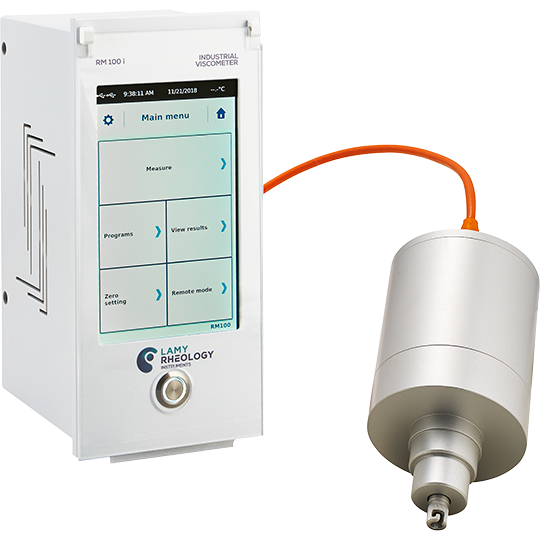

The 34 speed RM100i, with a built in calculator returning 4-20 mA output signal serial and USB ports. It works by immersion in a tank at a constant level. Real-time results of viscosity and temperature.

RM 100 i SPECIFICATIONS

Measuring principle - Rotating viscometer for immersion

Rotation speeds - 34 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500 rpm

Torque range - 0,05 to 30 mNm

Accuracy - +/ - 1% of the full scale

Repeatability - +/ - 0.2%

Temperature - -20 to 120 °C (PT100 sensor)

Digital display - Temperature - Speed - Torque - Viscosity - MS - Time

Viscosity range - 1 mPa.s to 150 000 000 mPa.s

Supply voltage - 90-240 VAC 50/60 Hz

PC connection - Serial and USB ports

Printer connection - Parallel port

Other detail - The Visco RM software allows automatic measurements on computer.

Dimensions (W x L x H) and weight - Electronic box : 105 x 175 x 261 mm Head : ? 70 mm x h 180 mm  3 kg
