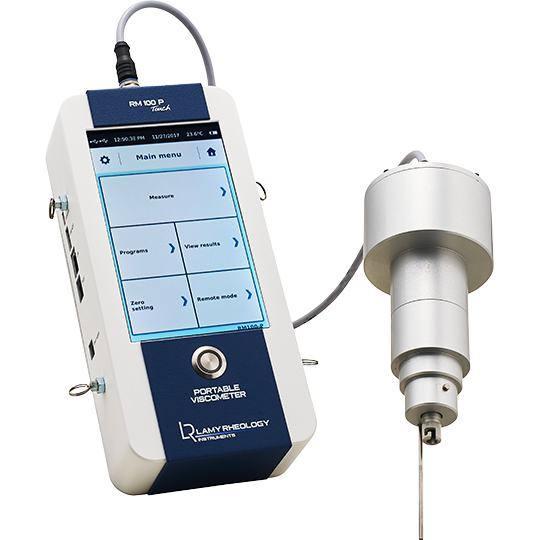

RM 100 Portable
Portable rotating Viscometer, without spring neither torsion wire, with integrated calculator and USB output. Measurements are carried out directly while the results are saved onto a USB stick.
Portable rotating Viscometer, with neither springs nor torsion bars, including an internal calculator and USB output.
Working with ASTM / ISO2555 , DIN / ISO3219, or MS-R standards and measure temperature of sample. RM 100 portable
SPECIFICATIONS
Measuring principle - Rotating portable viscometer
Rotation speeds - 34 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500 rpm
Torque range - 0,1 to 30 mNm
Accuracy - +/ - 1% of the full scale
Repeatability - +/ - 0.2%
Temperature - By integrated PT100 sensor, from -20 to 120 °C
Digital display - T°C - Speed or shear rate - Torque - Viscosity - MS - Time
Viscosity range - 1 to 510 000 000 mPa.s
Supply voltage - 90-240 VAC 50/60 Hz
PC connexion - Serial or USB port
Other detail - The Visco RM software enables automatic measurements on computer. Measurement Autonomy : 1 hour.
Dimensions (W x L x H) and weight - Electronic box : 140 x 245 x 62 mm Head : Ø 75 mm x h 310 mm 2 kg
7” Touch screen
Security & Confidentiality
An 'operator' function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions.
Gives you with an hour of measuring time.
Save your measurement protocols directly on your viscometer.
Allows you to you set measuring times for thixotropic products.
You can connect a USB printer. External control thanks to the optional VISCO RM software.
- T100100 PORTABLE RM100 VISCOMETER in carrying case 200 to 240M*
