Viscosity & Rheology

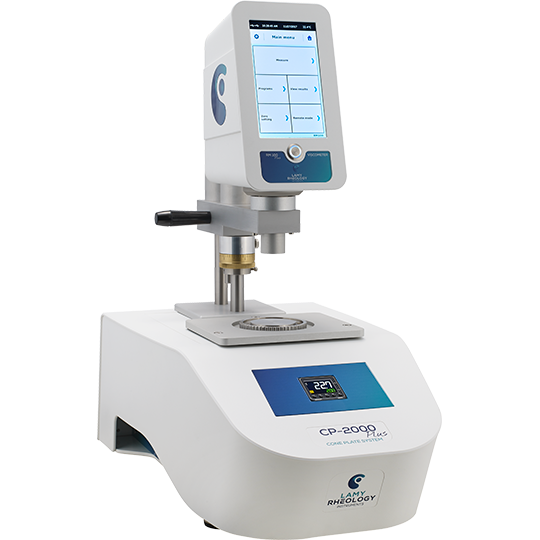

RM 100 TOUCH CP 2000

Cone and plate measuring systems are adapted for samples in limited quantities and difficult to clean. With maximum shear rate up to 20,000 s-1, the RM100 CP2000 PLUS will fit all your applications.

Description Features Configuration Application

Specifications

  • Type of instrument: Cone-plate rotating viscometer
  • Speed range : Unlimited number of speeds between 0.3 and 1500 rpm
  • Torque Range : From 0.05 to 30 mNm
  • Temperature : Cone Plate stand CP2000: 5 to 80 °C through Peltier effect Cone Plate stand CP2000H: room temperature to 300 °C through electric heating.
  • Accuracy : +/- 1 % of the full scale
  • Repeatability: +/- 0,2 %
  • Viscosity Range : 5 - 8,000,000 mPa·s depending on the cone used.
  • Display : 7” Touch screen
  • Display Settings : Viscosity | Speed | Torque | Temperature | Time | Measuring geometry | Level of sensitivity | Date/ hour | Choice of viscosity units: cP or mPa·s | Language: French/English
  • Security and Confidentiality : An 'operator' function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
  • Supply Voltage: 90-240 VAC 50/60 Hz pour les deux alimentations
  • Analog Output : 4 – 20 mA | Torque range to be defined by user
  • PC Connections : RS232 Port and USB
  • Printer Connection : USB Host Port
  • Benefits for you : Measure viscosity with a sample of less than 1ml. Quick warming and cleaning. Save your measurement protocols directly on your viscometer. The RM 100 TOUCH lets you set measuring times for thixotropic products. You can connect a USB printer. External control thanks to the optional VISCO RM software.
  • Carry Case : Optional for measuring head only
  • Dimensions and weight : Head: L180 x W135 x H250 mm | Stand for CP 2000: L300 x W490 x H630 mm | Weight: 22 kg

Speed range : Unlimited number of speeds between 0.3 and 1500 rpm

Torque Range : From 0.05 to 30 mNm

Temperature : Cone Plate stand CP2000: 5 to 80 °C through Peltier effect Cone Plate stand CP2000H: room temperature to 300 °C through electric heating.

Accuracy : +/- 1 % of the full scale

Repeatability: +/- 0,2 %

Viscosity Range : 5 - 8,000,000 mPa·s depending on the cone used.

Display : 7” Touch screen

Security and Confidentiality : An 'operator' function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Supply Voltage: 90-240 VAC 50/60 Hz pour les deux alimentations

Analog Output : 4 – 20 mA | Torque range to be defined by user

PC Connections : RS232 Port and USB

Printer Connection : USB Host Port

  • N170000 RM 100 CP2000 PLUS VISCOMETER Peltier air-air (+10 to +70°C)
  • N170100 RM 100 CP2000 PLUS VISCOMETER Peltier air-air (+10 to +70°C) with programmer*
  • N170200 RM 100 CP2000 PLUS VISCOMETER with liquid Peltier** (-20 to +120°C)
  • N170300 RM 100 CP2000 PLUS VISCOMETER with liquid Peltier** (-20 to +120°C) with programmer*
  • N170400 RM 100 CP2000 PLUS H VISCOMETER (Room to +300°C)
  • N170500 RM 100 CP2000 PLUS H VISCOMETER (Room to +300°C) with programmer*
  • N170800 RM 100 CP2000 PLUS VISCOMETER Peltier air-air (0 to +150°C)
  • N170900 RM 100 CP2000 PLUS VISCOMETER Peltier air-air (0 to +150°C) + programmer*
