Cooper Atkins Infrared 413 w/ Thermocouple Jack 20568

Description Features Configuration Application

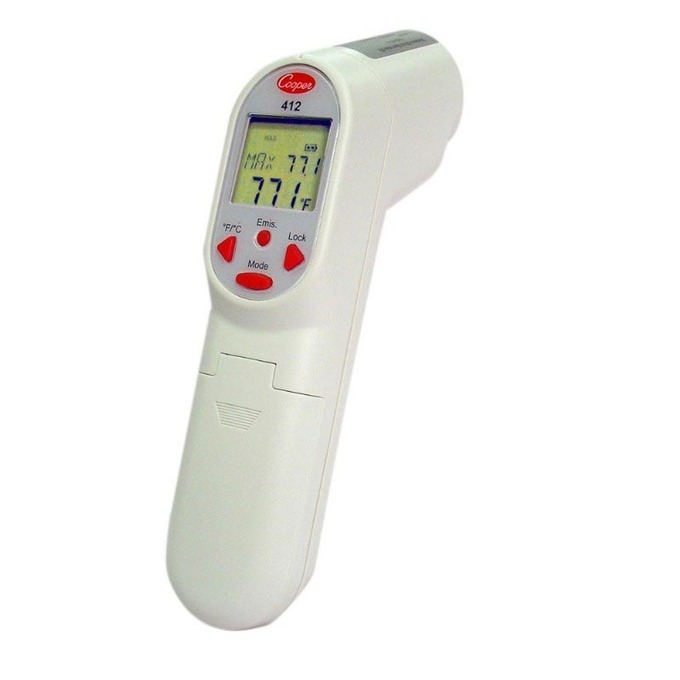

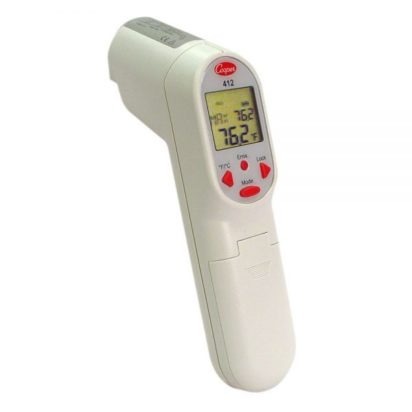

Model #: 412 The 412 incorporates a Non-contact Infrared Thermometer to measure surface temperature with a Thermocouple Jack to measure internal temperature. The 412 features a Distance to Spot Ratio of 11 to 1.  It is loaded with features including single-dot laser sighting, high and low alarms, back-lit LCD for easy viewing, automatic data hold and AVG, MAX, MIN, DIF and Locks Modes. Comes with a soft carrying pouch for storage.

Product Specifications

Certifications CE, RoHS, WEEE
Alarms High & low alarms
Hold Features Automatic data hold
Laser Single point laser
D:S 12:1
Measure Modes AVG, MAX, Min, DIF & Lock
Probe Accuracy ±2F°(±1C°) or ±1% of reading whichever is greater
Warranty 1 year warranty
F/C Switchable Yes
Probe Temperature Range -83° to 1999°F (-64° to 1400°C)  (Probe not included)
Backlight LCD for easy viewing
Features
Accepts any Type K thermocouple probe
Temperature Range -76° to 932°F(-60° to 500°)
Temperature Accuracy ±4°F (±2°C) or 2% of reading whichever is greater
LCD Height LCD with backlight
Emissivity Adjustable (Range: .01 to 1.00)
Housing Material ABS plastic
Response Time (90%) 1 second
Battery Type Two AAA 1.5V Alkaline
Battery Life 180 hours typical
Weight 6 oz  (170 g)
Dimensions 6.75' x 1.5' x 3' (171 mm x 38 mm x 76 mm)

FEATURES:

Temperature Range: -60° to 500°C
Accuracy: ±2°C
Laser: Single Dot
Distance to Spot: 12:1
Battery Life: 180 Hours

  • Infrared 413 w/ Thermocouple Jack
  • 462 Slim-Line Infrared

Compatible with any Type K thermocouple probe.

Temperature Range: -76° to 932°F(-60° to 500°)

Request A Quote

Cooper Atkins Infrared 413 w/ Thermocouple Jack 20568

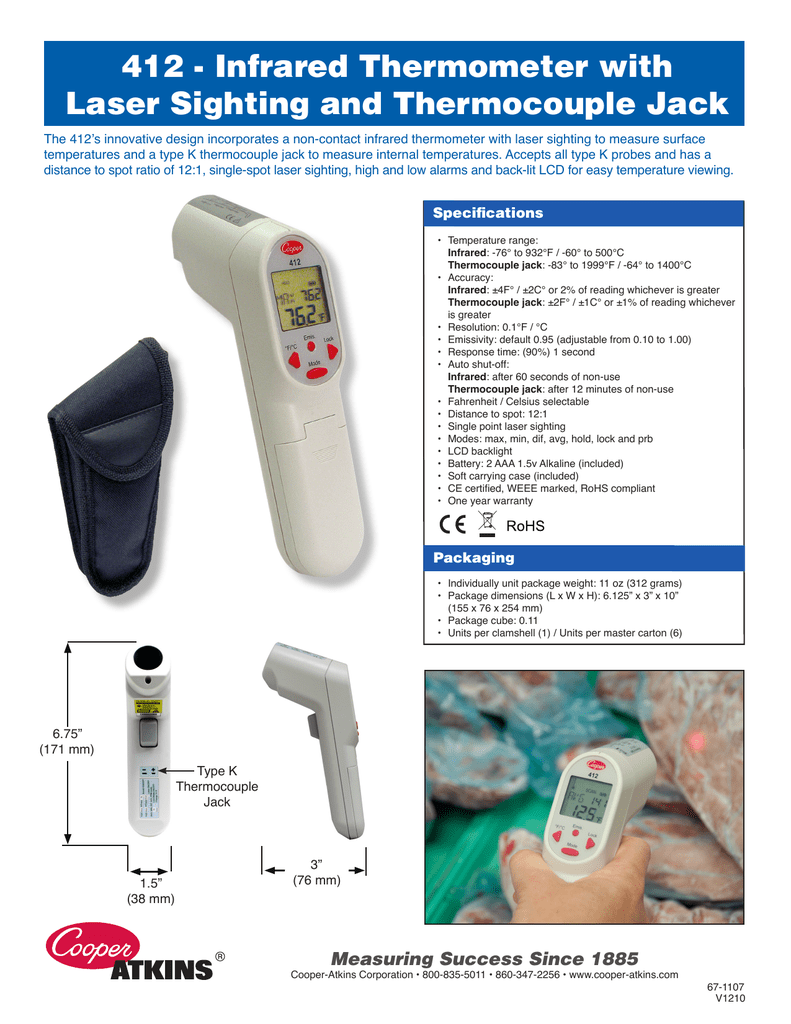

Download Brochure
