pH and Temperature

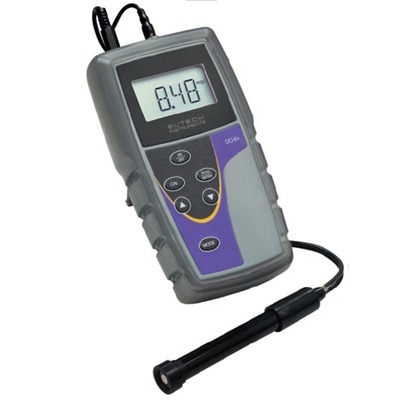

DO 6+ Dissolved Oxygen Meter

User Customisation for user's flexibility like toggling of various modes from ppm, mg/l to % saturation, view electrode diagnosis, etc.

Description Features Configuration Application

DO stands for Dissolved Oxygen, it is the measure of amount of gaseous oxygen dissolved in a solution. In theory, the amount of DO in a solution is dependent on 3 factors, namely temperature, salinity and atmospheric pressure. The measurement of DO requires a special DO electrode that is made up of an anode, a cathode, electrolyte solution and a gas permeable membrane. Specifications

Product Specification Description
Dissolved Oxygen Range 0   to 20.00 mg/l or ppm
Resolution & Accuracy 0.01   mg/l or 0.01 ppm & ±1.5% Full Scale
% Saturation of Oxygen 0.0   to 200/0 %
Resolution & Accuracy 0.1%   & ±1.5% Full Scale
Temperature Range 0.0   to 50.0 °C (32 to 122 °F)
Resolution & Accuracy 0.1   °C (0.1 °F) & ± 0.3 °C (0.5 °F)
Salinity Correction 0.0   to 50.0 ppt
Barometric Pressure Correction 500   to 1499 mmHg or 66.6 to 199.9 kPA
Method Automatic   correction after manual input
No. of Calibration Points Up   to 2 points; 100% in air and/or 0% in known solution
Special Functions Self-diagnostic; Electrode   characteristics; Hold & Auto-Power Off after20 minutes
Power Requirements 4   x 1.4V batteries; > 700 hrs
  • User Customisation for user's flexibility like toggling of various modes from ppm, mg/l to % saturation, view electrode diagnosis, etc.
  • Easy Calibration can be performed at 100% and/or 0% and mg/l or ppm against a known solution
  • Automatic Temperature Compensation (ATC) guarantees the highest accuracy under varying temperature condition
  • Galvanic Cell allows instantaneous measurements, producing quick responses and eliminates polarisation; requires minimal maintenance
  • Automatically Compensates Salinity and Barometric Pressure after manual input for increased accuracy
  • Hold Function momentarily freezes reading for easy viewing
  • Auto-Power Off saves battery power after non-use
  • Self-Diagnostic with message codes for easy troubleshooting
  • Large Custom LCD provides optimum viewing even at a distance
  • Protective Rubber Boot shields meter from accidental knocks and features a sturdy built-in stand for easy bench-top operation
  • Rugged Carrying Case (Optional) provides handy on-site meter calibration and measurement

Eutech DO 6+

Aquaculture: Use to monitor oxygen levels in catfish and shrimp farming; game stocking ponds; ornamental fish tanks and ponds; and in other fish farming applications.

Industrial: Ideal for checking the quality of plant water intake and discharge, wastewater and water treatment, recirculating systems and industrial process systems.

Environmental: Use to test water quality, monitor health of aquatic ecosystems, survey surface and ground water drinking supplies.

Educational: Ideal for quick, accurate DO readings in laboratories and schools.
