pH and Temperature

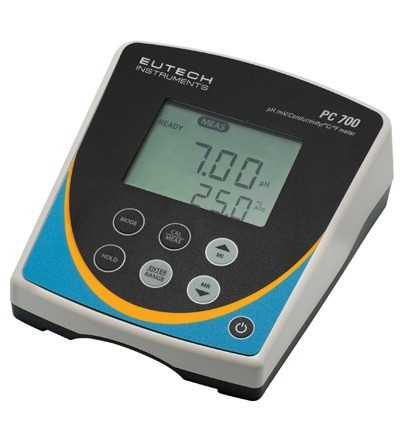

Eutech PC 700 Multi-Paramter Bench Instrument

The multi-parameter Eutech PC 700 measures pH, ORP, conductivity and temperature with a single meter. User-friendly...

Description Features Configuration Application

Specifications

Product Specification Description
pH Range -2.00   to 16.00 pH
Resolution 0.01   pH
Accuracy ±0.01   pH
Cal. Points Up   to 5
Buffer Sets USA   (1.68, 4.01, 7.00, 10.01, 12.45), NIST (1.68, 4.01, 6.86, 9.18, 12.45)
ORP Range ±2000   mV
Rel. mV Range ±2000   mV
Resolution 0.1   mV (±199.9 mV) / 1 mV (beyond)
Accuracy ±0.2   mV (±199.9 mV) / ±2 mV (beyond)
Conductivity Range 0.0   µS to 200.0 mS
Resolution 0.01   / 0.1 / 1 µS ; 0.01 / 0.1 mS
Accuracy ±1   % full scale
Cal. Points Automatic   (84 µS, 1413 µS, 12.88 mS, 111.8 mS); maximum 1 per range; manual (5 points);   maximum 1 per range
Cell Constant 0.1,   1.0, 10.0 (selectable)
TDS Range ..   to 100.0 ppt @ 0.5 fact (200.0 ppt @ 1 factor)
Resolution 0.01   / 0.1 / 1 ppm ; 0.01 / 0.1 ppt
Accuracy ±1   % full scale
Cal. Points Manual   (5 points); maximum 1 per range
TDS Factor 0.40   to 1.00 (adjustable)
Temperature Range (Meter) 0.0   to 100.0 °C / 32.0 to 212.0 °F
Resolution 0.1   °C / 0.1 °F
Accuracy ±0.5   °C / ±0.9 °F
Coefficient (Per °C) 0.00   to 10.00 %
Normalization 15.0   to 30.0 °C (adjustable)
Compensation Type & Range Automatic   with supplied cell or manual 0.0 to 100 °C / 32.0 to 212.0 °F, 0 to 80 °C / 32.0 to 176.0 °F with supplied   cell
Power Requirements 9   V DC adapter, 1.3 A (100/240 VAC, SMPS)

The multi-parameter Eutech PC 700 measures pH, ORP, conductivity and temperature with a single meter. User-friendly, advanced features and a large custom-size display – perfect for research work on a budget!

  • Large screen in a compact footprint
  • Meter accepts pH and Redox electrodes, in addition to Conductivity/TDS – it’s like having four meters in one!
  • Up to 5-point push button calibration
  • Selectable cell constant
  • Auto-ranging across 5 Conductivity ranges
  • Easy interchangeability of probes
  • Non-volatile memory holds up to 100 data points

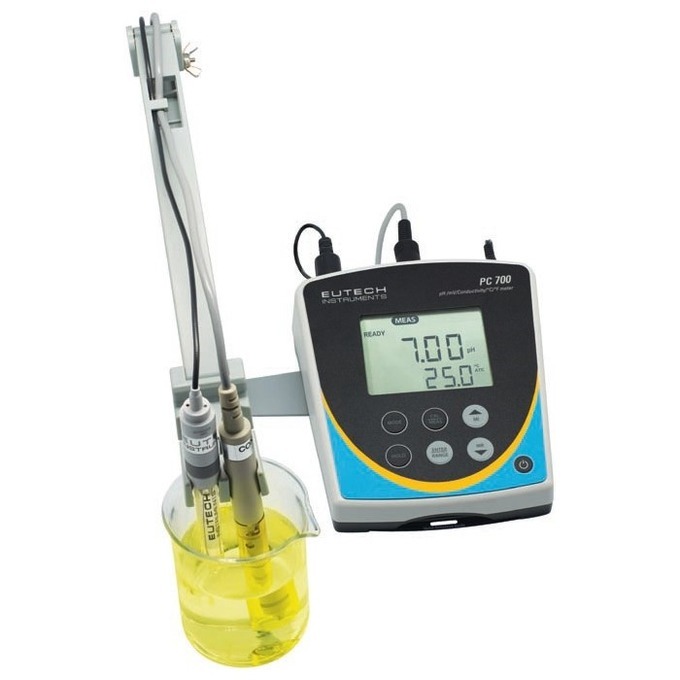

  • Integral electrode holder
  • Eutech pH 700
  • Eutech Ion 700
  • Eutech CON 700
  • Eutech DO 700
  • Water quality testing
  • Checking metal finishes
  • Solutions
  • Cooling tower water
  • Printing fountain solutions
  • Boiler water
  • Brines
  • Drilling mud
  • Rinse tanks
  • Ponds
  • Pollution control
  • Recirculating systems
  • Waste water
  • Industrial process systems
  • General use in laboratories
  • Titration
  • Quality assurance
  • Ecological studies
  • Food-processing
