Grain Truck Spears

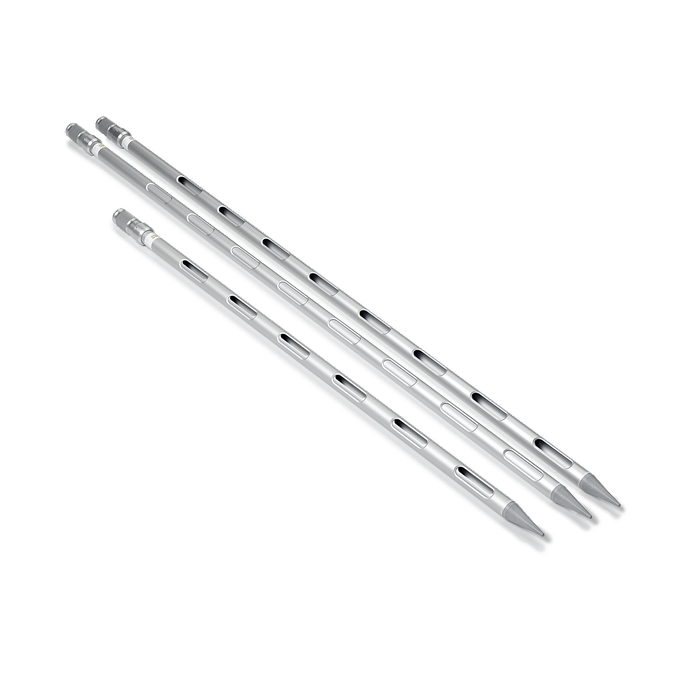

Aluminium sample spear for the easy manual sampling from vehicles or grain stores.

Description Features Configuration Application

Mechanical samplers are used for obtaining average samples. They allow the sampling up to a depth of 2 m.

Insert the closed sampler into the bulk goods. Open the chambers by a single turn of the handle and afterwards turn it back again. The specially shaped openings avoid a cutting of the grains. The original percentage of broken corns will not be increased. The sampler consists of two anodized aluminium tubes and can be cleaned easily by drawing them apart.

The spiral openings make sure that no material is falling primarly from top to bottom into the spear. Can be easily pulled apart from cleaning.

model	PNS-84	PNS-88	PNS-88	PNS-88	Pellets
length	1,45m	2,0m	2,5m	3,0m	1,3m
diameter	38mm	38mm	38mm	38mm	50mm
openings	8	8	8	8	8
weight	2,0kg	2,5kg	3,0kg	3,5kg	2,3kg
p./no.	1720 0300	1720 0310	1720 0315	1720 0318	1720 0320
